What is XRD? Understanding x-ray diffraction analysis

Identifying what XRD reveals at the atomic scale shapes every decision a laboratory professional makes when working with crystalline solids, powder samples, and complex multi-phase specimen sets. This article outlines the definition, operating principle, and practical application of x-ray diffraction, from Bragg's law to sample holder selection, so the method can be applied with technical confidence. A zero background xrd holder made from precisely oriented silicon illustrates how equipment choice directly influences intensity, background level, and the quality of the diffraction pattern.

What is XRD in materials science

X-ray diffraction is a non-destructive analytical technique used to probe the atomic structure of crystalline materials by measuring how an x-ray beam is scattered by ordered planes in the lattice. The resulting diffraction pattern acts as a structural fingerprint for phase identification, quantitative phase analysis, and composition mapping, while preserving the sample for further work.

XRD definition and what it stands for

In precise terms, XRD stands for X-ray diffraction. The method exposes a specimen to a monochromatic x-ray source and records the angles and intensity values at which constructive interference occurs, generating the data required for diffraction analysis. Once the scan progresses across the selected 2θ range, the instrument builds a complete diffraction pattern that reflects the crystal structure, lattice spacing, and atomic arrangement of the material.

• Non-destructive operation: the sample remains intact throughout the x-ray diffraction experiment, which is essential for limited, valuable, or irreplaceable specimen material.
• Reliable phase fingerprinting: each crystalline phase produces a distinct diffraction pattern, enabling robust identification against reference databases and quantitative phase analysis in mixed systems.
• Practical measurement times: a routine XRD scan is often completed in less than 20 minutes, making the method suitable for research, process control, and routine laboratory use.
• Broad specimen compatibility: powder, bulk solids, semi-crystalline samples, and other crystalline materials can all be examined; reduced crystallinity or amorphous content appears as broad diffuse scattering rather than sharp peaks.

Beyond straightforward identification, x-ray diffraction techniques provide access to lattice parameters, microstrain, crystallite size, texture, and crystallinity from the same data set. In practice, few methods combine this level of structural detail with such limited sample preparation.

How x-ray diffraction reveals material structure

X-ray diffraction relies on elastic scattering from the electron density surrounding atoms. In a periodic lattice, scattered waves interfere constructively only at specific angles, as described by Bragg's law: that condition links the measured peak positions directly to interplanar spacing and therefore to structure. The measured intensity distribution then carries information about atomic structure, crystal structure, and the arrangement of atoms within the unit cell.

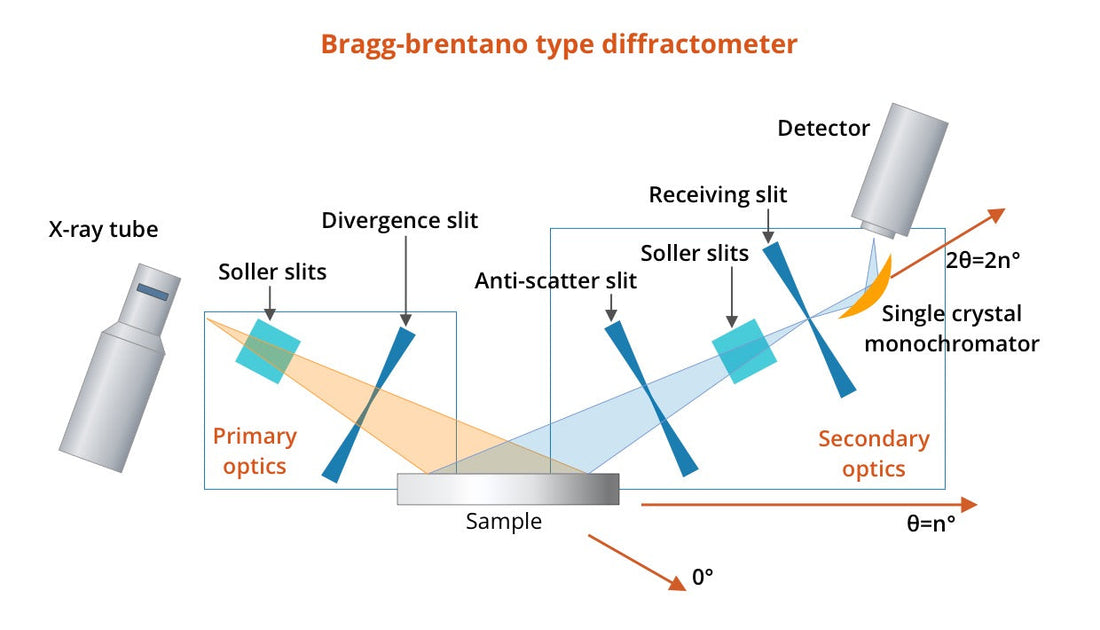

An x-ray diffraction experiment depends on three elements: a stable x-ray source, precise sample positioning, and a detector capable of recording diffracted intensity with low noise. The distinction lies in measurement fidelity. Even slight specimen displacement at laboratory scale shifts peak positions and compromises phase analysis, lattice calculation, and any subsequent interpretation of the diffraction pattern.

Key advantages of XRD as an analytical technique

Minimal preparation adds to that value. Researchers can examine crystalline materials, powders, and formulated solids without the destructive workflows often required by other approaches.

• High information yield: one measurement can support phase identification, crystal structure determination, crystallinity assessment, and broader diffraction analysis.
• Low material demand: useful data may be obtained from about 0.01 mg of powder, which is worth considering when only a very limited sample is available.
• Quantitative capability: under controlled conditions, peak intensity and integrated area can be used to estimate the abundance of each crystalline phase in a mixture.

The standard demands careful alignment, specimen displacement below ±0.1 mm, and holders matched to the instrument geometry, conditions that, once met, return lattice parameters, phase fractions, and crystallite size from a single scan.

The principles behind x-ray diffraction

The physics of x-ray diffraction are well established. Their practical consequences still shape every measurement method used to characterise crystalline materials, because peak position, intensity, and breadth determine how much structural information can be recovered from a specimen.

Bragg's law and constructive interference explained

The governing relation for x-ray diffraction is Bragg's law: nλ = 2d sinθ, where n is an integer, λ is the x-ray wavelength, d is the interplanar spacing, and θ is the incident angle. The distinction lies in the path difference between waves scattered by successive atomic planes: constructive interference appears only when that difference matches an integer multiple of the wavelength.

• Interplanar spacing (d): obtained from the measured diffraction angle once the x-ray wavelength is fixed, giving the geometric signature of each atomic plane family within the lattice.
• Integer order (n): higher-order reflections appear at larger angles and can add useful detail on crystal structure and unit-cell geometry.
• Angle dependence (θ): small peak shifts correspond to measurable changes in d-spacing, so x-ray diffraction is sensitive to lattice strain and thermal expansion.

Reading a diffraction pattern, peaks, positions, and intensities

Peak positions are set by interplanar spacing and unit-cell dimensions, while peak intensity depends on the number, type, and arrangement of atoms in the unit cell, so the measured XRD dataset encodes the underlying structure.

Reflections are indexed with Miller indices (h, k, l) from the measured angle and known wavelength, allowing unit-cell parameters and space-group information to be derived. In practice, a single crystal produces discrete spots, whereas a powder specimen generates continuous rings because many crystallite orientations satisfy the diffraction condition simultaneously.

Crystallite size, strain, and degree of crystallinity from XRD

Broadening increases as coherent domain size decreases, and the Scherrer method is used at laboratory scale to estimate crystallite dimensions from XRD data, while Williamson–Hall analysis separates size effects from microstrain within the crystal structure.

That same profile also indicates crystallinity. Sharp reflections arise from ordered regions, whereas a broad diffuse background is associated with amorphous content; separating these contributions is essential when assessing pharmaceutical formulations, polymers, and other materials where crystallinity governs solubility, mechanical behaviour, and processing response.

XRD application and what XRD analysis reveals

X-ray diffraction is used for both full crystal structure determination and routine control in production laboratories. The method is the same in each case: record a diffraction pattern from the specimen, then interpret peak position, intensity, and profile according to the structural problem under study.

Industries and research fields using XRD

XRD analysis is established wherever crystal phase, structure, and performance are closely linked. In practice, it supports phase identification in complex powder mixtures, tracks structural change during processing, and confirms the identity of synthesised compounds against reference standards.

In contrast with spectroscopic techniques that mainly report composition, X-ray diffraction resolves how atoms are arranged in the lattice. The distinction lies in structure rather than chemistry alone, which is why XRD is especially effective for polymorph identification when compounds share the same formula but produce different X-ray diffraction patterns. That matters directly in pharmaceuticals, where crystal phase can affect solubility and bioavailability.

Beyond routine use, X-ray diffraction also supports in-situ and non-ambient experiments under controlled temperature, humidity, or pressure. The same method is valuable for nanostructured solids, where peak broadening and interference effects often carry more information than peak position alone.

Phase identification and quantitative XRD analysis

The most common application remains phase identification. Measured patterns are matched against reference databases by peak position and relative intensity, identifying each crystalline phase present.

Quantitative XRD analysis uses integrated peak areas to estimate the abundance of each crystal phase in a multi-component powder or bulk specimen. Rietveld refinement and reference intensity ratio approaches convert integrated peak areas to weight fractions; the same dataset supports lattice-based stress evaluation in processed components.

• Qualitative phase identification: database matching supports identification of known phases, including polymorphs that elemental methods cannot separate.
• Quantitative phase analysis: Rietveld refinement or reference intensity ratio methods convert diffraction data into phase fractions.
• Residual stress measurement: shifts in lattice spacing relative to a stress-free reference reveal internal stress in welded, machined, or heat-treated parts.

Specialised variants extend the application range of XRD analysis: GIXRD for thin films and coatings, SAXS for features from 1 nm to 400 nm, and total scattering for disordered materials where conventional powder diffraction gives only part of the picture. Method selection should account for specimen form, required angular resolution, and whether the target structure is crystalline, nanostructured, or partially disordered.

Sample holders and measurement accuracy in XRD

That link between method and specimen preparation leads directly to measurement quality. Sample holder choice is critical when the sample volume is small, the crystalline phase fraction is low, or weak peaks must be resolved against background. Holder-derived scattering can raise noise, distort low-intensity features, and reduce confidence in phase identification, crystallinity assessment, and diffraction analysis.

Silicon zero-background holders address that problem through crystal orientation: the holder redirects X-ray scattering away from the detector, reducing interference from the support without suppressing the signal from the sample. The standard demands this level of control when low-signal XRD work depends on subtle peak separation or accurate intensity measurement.

At laboratory scale, the practical effect is straightforward. Laboratories working with limited powder quantities, low-crystallinity solids, or demanding phase identification workflows use zero background XRD sample holders so that the recorded diffraction pattern reflects the sample rather than the mount. Flat and cavity geometries suit different specimen volumes, and controlled manufacturing tolerances support reproducible positioning across instrument platforms.

Frequently asked questions

What does XRD stand for and what is it used for?

XRD stands for x-ray diffraction. It is a non-destructive analytical technique used for identification of crystalline phases, determination of crystal structure, measurement of lattice parameters, and assessment of crystallinity in a specimen.

In practice, the method directs a monochromatic x-ray beam at a sample and records the resulting diffraction pattern: from peak position and intensity, laboratories can extract phase composition, estimate component concentrations in mixtures, evaluate residual stress, and characterise crystallite size within a single analytical workflow.

What are the basic principles of x-ray diffraction?

X-ray diffraction follows Bragg's law, nλ = 2d sinθ, which defines when x-ray waves interacting with parallel atomic planes generate constructive interference. Once the path difference between waves from successive planes matches an integer multiple of the wavelength, a measurable diffraction peak appears.

Peak positions correspond to interplanar spacing within the lattice, while intensity depends on the atomic arrangement associated with that reflection. The diffraction pattern therefore supports both phase identification and quantitative analysis of crystalline material.

How does sample holder choice affect XRD data quality?

Because the method relies on peak measurement, holder selection directly affects peak accuracy and background signal levels. The sample holder can contribute directly to background signal during XRD acquisition, and conventional supports may diffract the x-ray beam into the detector, creating interference that overlaps with weak reflections from the specimen.

As a result, low-intensity features in the diffraction pattern can be obscured. This reduces the reliability of phase identification and structural interpretation.

For that reason, zero-background holders made from precisely oriented silicon are worth considering when background noise must be minimised. Their crystallographic orientation redirects parasitic diffraction away from the detector, which improves sensitivity for small sample volumes, weakly diffracting materials, and low-crystallinity specimens.

Matching holder design to the analytical objective is therefore essential when subtle structural features, low-intensity reflections, or small crystallite contributions would otherwise be masked by parasitic signal.
