Bruker Compatible - Custom Size With Cavity

We are proud to offer a selection of zero background silicon sample holders designed for Bruker X-ray diffraction (XRD) systems.

These holders provide secure sample support while minimizing interference in the data.Zero background holders are particularly useful when working with small sample volumes.Each insert is manufactured from silicon  in a precise orientation, ensuring that X-rays striking the surface are not diffracted into the detector. This allows for accurate analysis of small samples without interference from the holder material.

Silicon Single Crystal Sample Holders (Orientation: 911)

Holder with Cavity

Compatible with ;

D8 DISCOVER Family

D8 ADVANCE Family

D6 PHASER

D2 PHASER

D8 ENDEAVOR

Standard Sizing

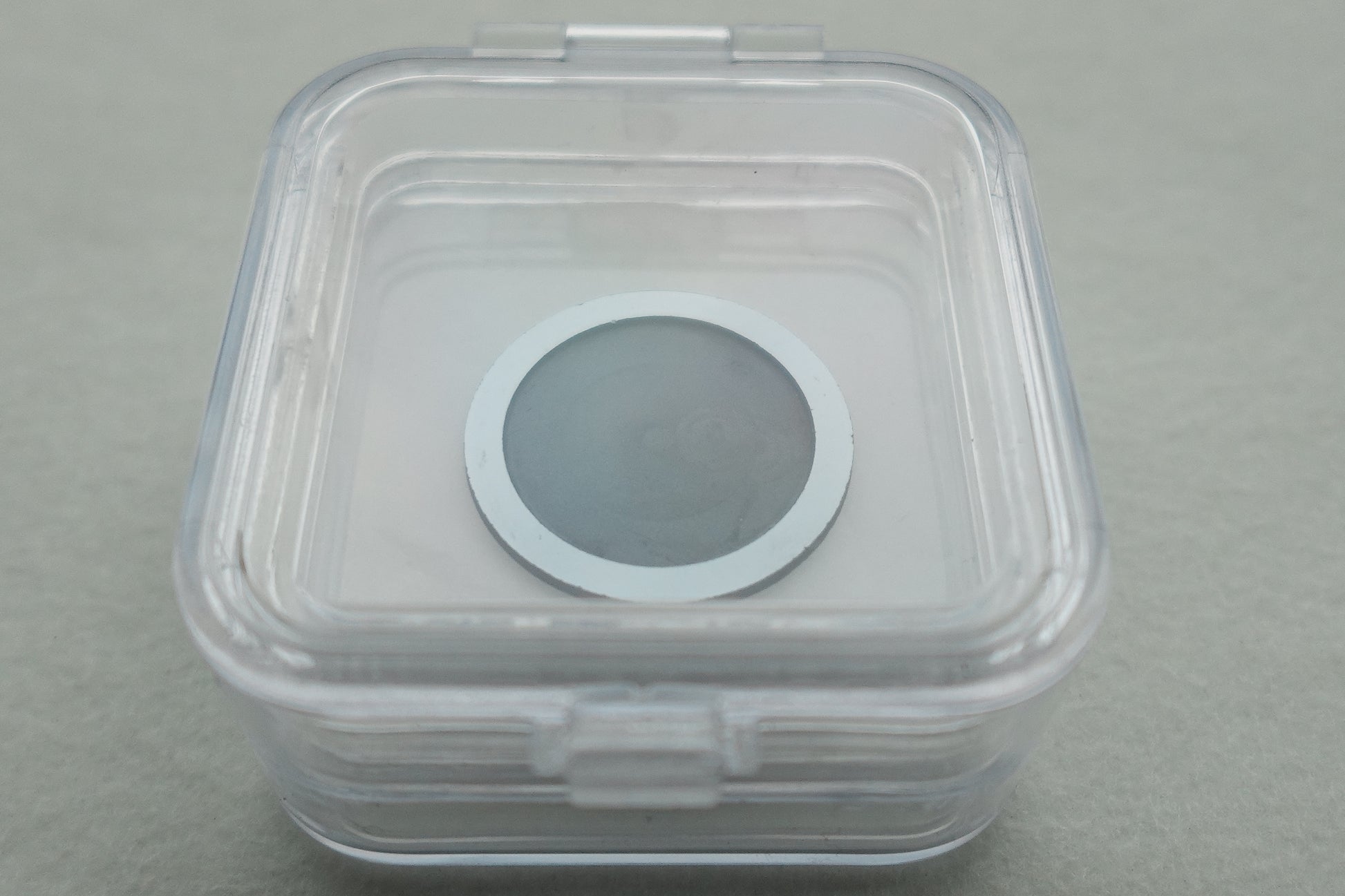

Zero Background XRD Sample Holder ; 25mm Diameter , 1mm Thick With Cavity 20mm Diameter , 0.2mm Depth

Return Policy

We stand by the quality of our products. If you receive an item that doesn’t meet your expectations , we will gladly accept the return and provide a replacement at no additional cost.

Specifications and Tolerances:

Diameter: -0.020 mm to +0.072 mm

Thickness: ±0.1 mm
